Anechoic Chamber

Circuit Design's EMI 3m anechoic chamber is suitable for EMI & EMC testing, as well as for high precision measurement of the radiated electromagnetic field emitted by antennas of all types of radio equipment.

Picture:Anechoic chamber

Characteristics

Parameter Specification
Site attenuation characteristics
Frequency range 30 MHz to 1 GHz NSA +/-4 dB or less
1 GHz to 18 GHz Reference +/-4 dB or less
Measurement distance 3 m
Shield Characteristics (MIL-STD-285)
Field strength 150 kHz to 30 MHz -80 dB or less
Plane wave 30 MHz to 1 GHz -80 dB or less
1 GHz to 18 GHz -80 dB or less
Power line shielding characteristics (MIL-STD-220A)
Frequency range 50 kHz to 1 GHz -80 dB or less
1 GHz to 10 GHz -80 dB or less
Dimensions
External 4,700W x 7,200L x 5,540H mm
Internal 4,000W x 6,500L x 4,997H mm

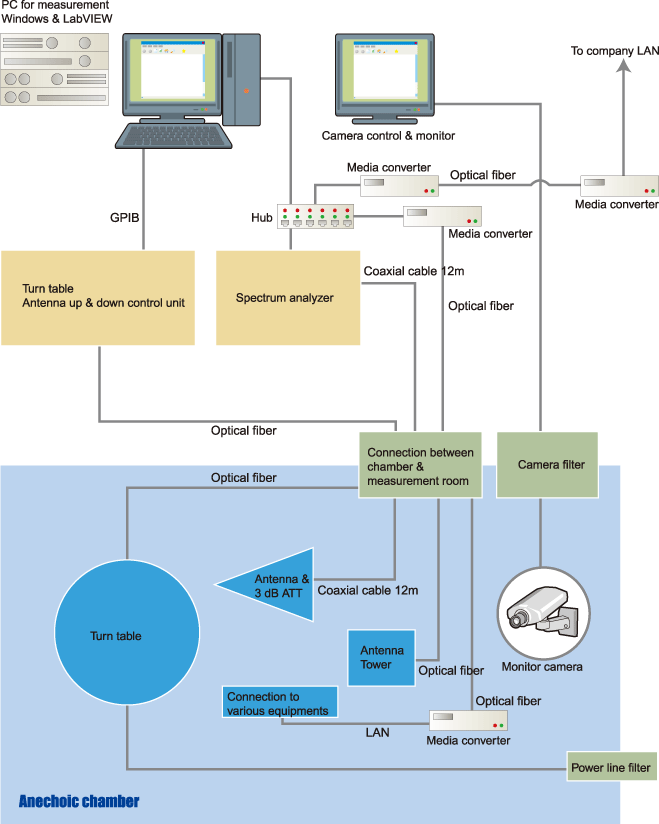

EMC measurement connection diagram

Picture:Anechoic chamber

Anechoic chamber equipment list

Item Model Q'ty Remarks
Antenna USLP9143 1 (0.25)0.3 to 5(7) GHz, 50W
CBL 6143X-Wing
BiLog Antenna (Schaffner)
1 30 MHz to 3 GHz
ATT 2 3 dB ATT
LISN NSLK8123 (Schwarzbeck) 2 3φ16A
Spectrum analyzer E4440A (Keysight)
FSVA3030 (Rohde & Schwarz)
1
1
3 Hz to 26.5 GHz
10 Hz to 30 GHz
Coaxial cable 12 m -N-N 2
Turn table Diameter 1200 mm (360º endless) 1
