The PA-TR3-400M and PA-TR3-800M are power amplifier modules operating in the UHF frequency band and designed to be connected to Circuit Design’s RF modules for applications requiring higher power transmission. The Amplifier/Through Line selectable circuit allows operation in half-duplex applications. The module operates with only 3 V power supply and has a gain up to 17 dB which is adjustable with the adjustment volume.
The small-thin package (5 mm high) enables installation in compact equipment.
It is prohibited to use radio devices with output power exceeding the limits specified by radio laws and regulations in each country. Before using this power amplifier, it is recommended to contact the regulatory authority in each country to verify conformity with the legal requirements for the intended frequency range.
Features
- 3 V operation
- Connectable to transceivers
- Amplifier or Through Line selectable
- 400 MHz and 800 MHz versions available
- Small, thin package
Applications
- Telemetry
- Water level monitor for rivers, dams, etc
- Monitoring systems for environmental data such as temperature, humidity, etc.
- Security alarm monitoring, long-range data transmission
- Various tracking systems
- Telecontrol
- Industrial remote control systems
- Security
- Security alarm systems
Specifications
PA-TR3-400M
Electrical specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Frequency | 418 to 463 MHz | 434 MHz typ. |
| Input power | 10 dBm typ. | Maximum 13 dBm |
| Output power | 26 dBm typ. | VCC = 3 V, 434 MHz, Pin = +10 dBm 25 C, 50 ohm terminated |
| Power gain | 16 dB | |
| Supply voltage | DC 2.8 to 3.2 V | |
| Supply current | 450 mA typ. | AMP operation |
| Input impedance | 50 ohm | Un-balanced |
| Output impedance | 50 ohm | Un-balanced |
| Spurious ratio | 70 dBc | |
| Insertion loss | 2.0 dB typ. | |
| Operating temperature range | -20 to +65 degree C | |
| Dimensions | 27 x 19 x 5 mm | |
| Weight | 4.5 g |
PA-TR3-800M
Electrical specifications
| Parameter | Specification | Remarks |
|---|---|---|
| Frequency | 868 to 871 MHz | |
| Input power | 10 dBm typ. | Maximum 13 dBm |
| Output power | 26 dBm typ. | VCC = 3 V, 871 MHz, Pin = +10 dBm 25 C, 50 ohm terminated |
| Power gain | 16 dB | |
| Supply voltage | DC 2.8 to 3.2 V | |
| Supply current | 650 mA typ. | AMP operation |
| Input impedance | 50 ohm | Un-balanced |
| Output impedance | 50 ohm | Un-balanced |
| Spurious ratio | 60 dBc | |
| Insertion loss | 2.0 dB typ. | |
| Operating temperature range | -20 to +65 degree C | |
| Dimensions | 27 x 19 x 5 mm | |
| Weight | 4.5 g |

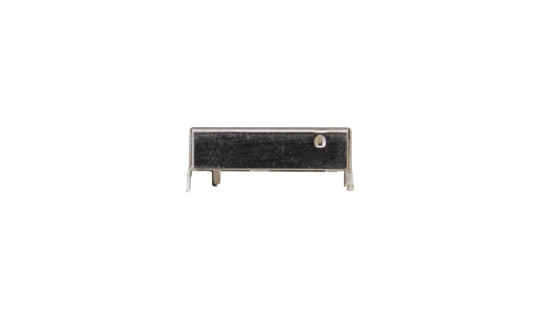

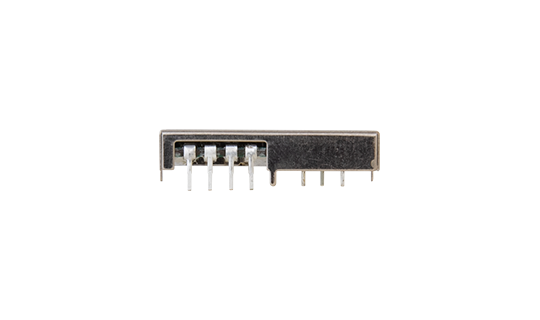

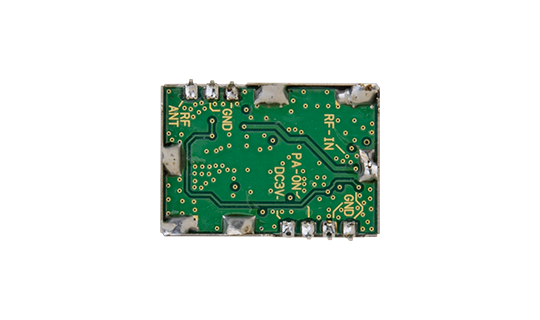

External View
